ALAntrac Horizontal Tilting System Set 2.3x1.6m with 1.5m ALAntrac ...
Description

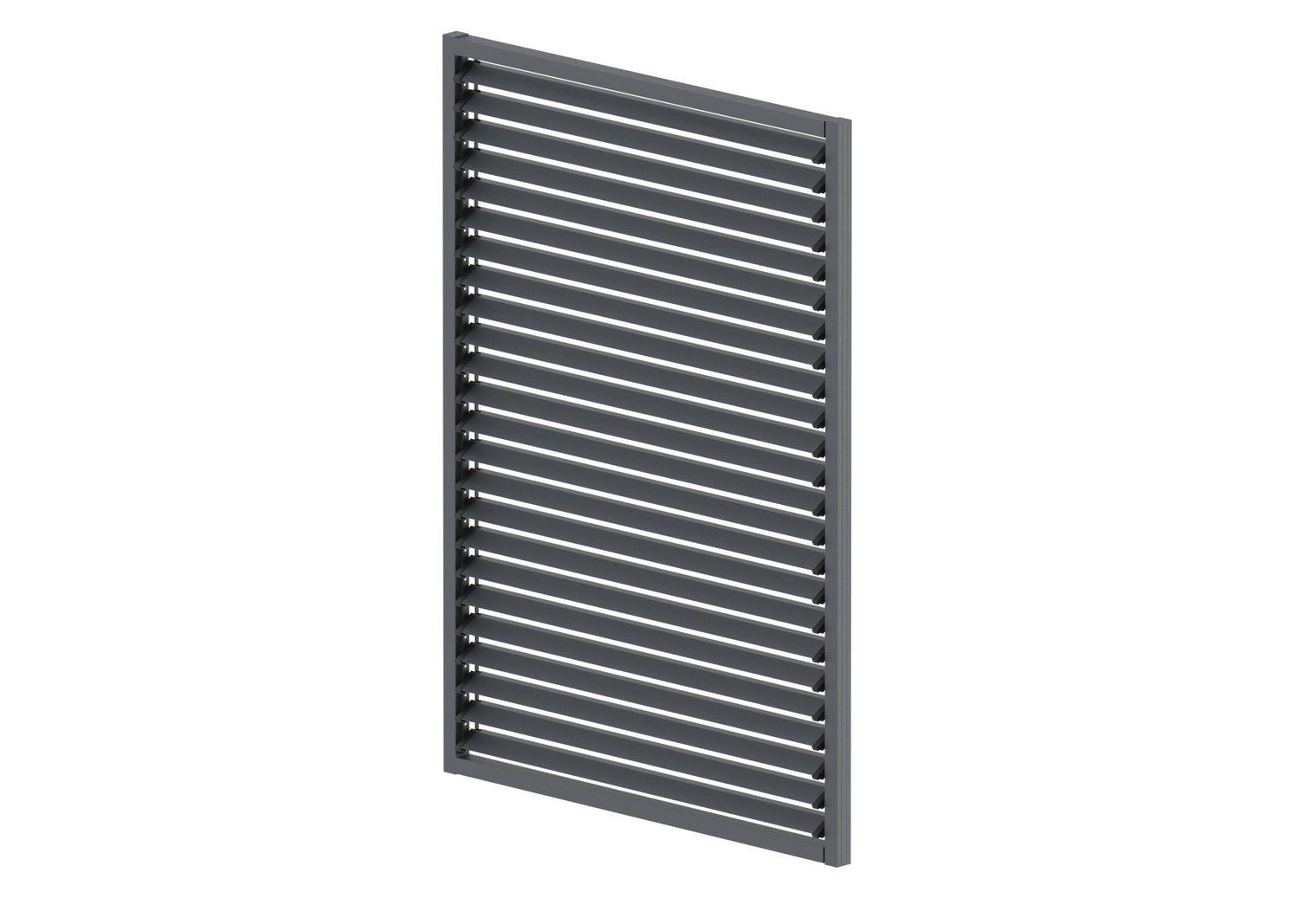

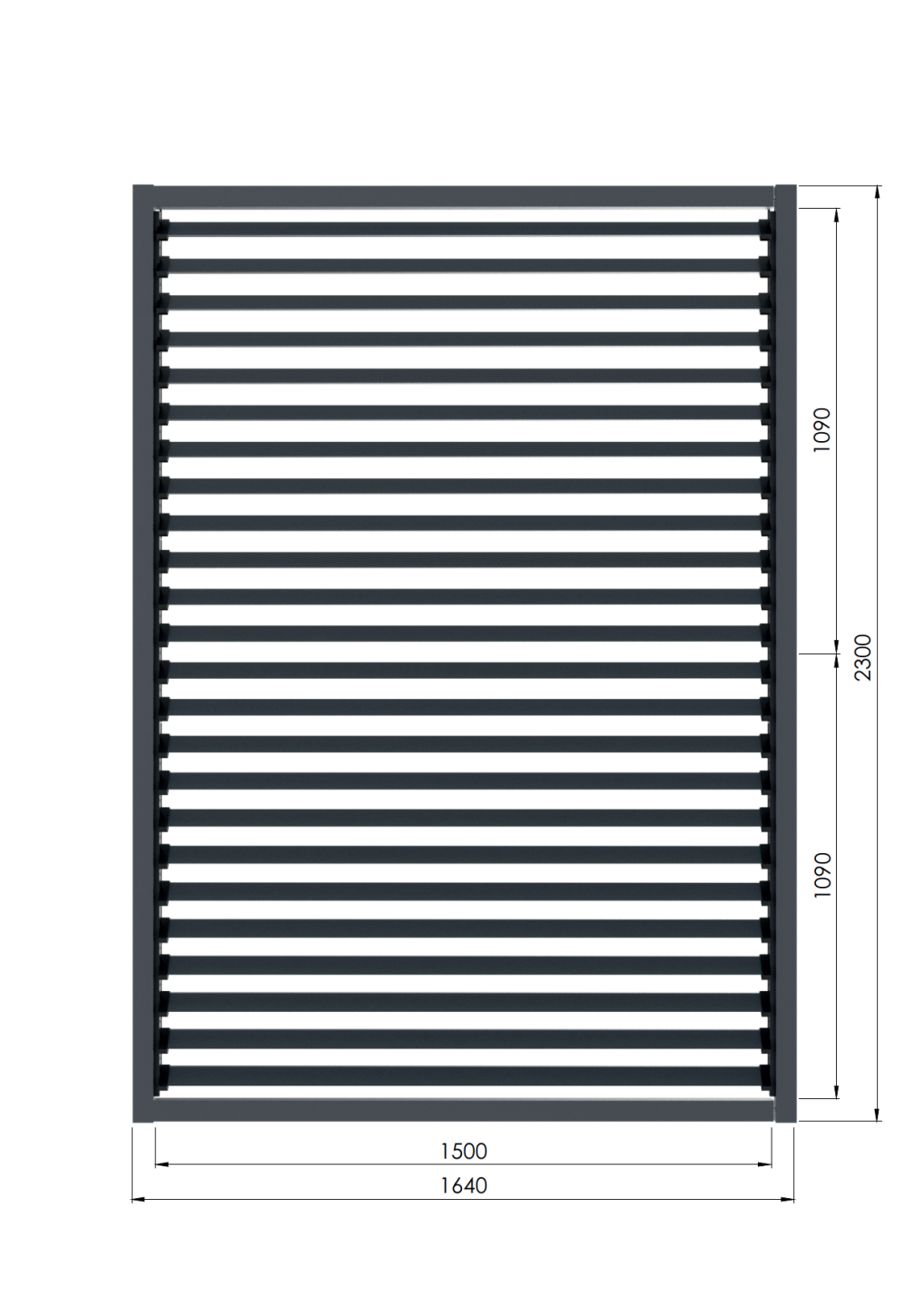

Anthracite Aluminum Horizontal Tilting System Set 2.28 × 1.64 m with 1.5 m Anthracite Aluminum Rhombus Infill 20×105 mm, in Anthracite Aluminum Frame 50×60 mm
Product Code: FG/SWS-AL-L1-FR-SET1
A complete set of a modern horizontal tilting system designed for the production of elegant infills and shading systems. The construction consists of a sturdy 50 × 60 mm aluminum frame in Anthracite RAL 7016 finish. The system's infill comprises 20 × 105 mm aluminum rhombus slats in Anthracite RAL 7016 finish, ensuring a modern look, high strength, and optimal shading, complemented by an aluminum tilting mechanism, also in Anthracite RAL 7016 finish, allowing for regulation of airflow and privacy.
The system is designed for quick, weld-free assembly, by screwing with A2 fasteners. The aluminum profiles made of EN AW-6063-T6 material ensure high resistance to corrosion, moisture, and weather conditions. The powder-coated surface finish guarantees long-term color stability, UV resistance, and a modern matte appearance without the need for additional maintenance.
The construction allows for easy disassembly and replacement of individual parts during modifications or damage.
Advantages:
- modern horizontal tilting system
- sturdy 50 × 60 mm aluminum frame
- rhombus aluminum slats 20 × 105 mm
- standard maintenance
- high resistance to corrosion and weather conditions
- UV stable powder coating RAL 7016
- simple and quick assembly without welding
- possibility to regulate shading and privacy
- elegant matte design suitable for modern fences and shading.
- aluminum tilting components for higher system strength and longevity.
Set Components:
- 1 pc FG/P50x60-6000-R7016
- 1 pc FG/P50x60-1850-R7016
- 2 pcs FG/PC20x8-6000-R7016
- 2 pcs FG/PC20x8-1850-R7016
- 4 pcs A-DIN 912-A2 M10x60
- 4 pcs FG/CP50x60-R7016
- 8 pcs A-DIN 7982C-TX-A2 4,2x22
- 2 pcs FG/SWS-1090-AL-R7016
- 6 pcs FG/L1S20x105-6000-R7016
Parameters
Download
Parts of set
Set of aluminum post 50x60 and cap - 6000mm R7016 FG/P50x60-6000-R7016
Set of aluminum post 50x60 and cap - 1850mm R7016 FG/P50x60-1850-R7016
Narrow cover strip for post profiles and the U-adapter of the fencing system, 20 × 08 – 6.0 m – Anthracite RAL 7016 FG/PC20x8-6000-R7016
Narrow cover strip for post profiles and the U-adapter of the fencing system, 20 × 08 – 1.85 m – Anthracite RAL 7016 FG/PC20x8-1850-R7016
Hexagon socket head cap screw, AISI304, M10x60 A-DIN 912-A2 M10x60
Aluminum cap for post 50x60 R7016 FG/CP50x60-R7016
Sheet metal screw with countersunk head-TORX, stainless steel A-DIN 7982C-TX-A2 4,2x22
Movable aluminum system – louvered – pair (left + right) FG/SWS-1090-AL-R7016
Aluminum fence blind 20x105-6000mm FG/L1S20x105-6000-R7016
