GS-AL/P8102/N/E-set

Fittings - sliding doors - AL profile AL

Material: Aluminium, Surface finish: Anodized, Glass t: 8-10, Recommended weight of the wing: max. 80kg, L: 2000, Anchoring: Wall, Self closing mechanism: No, Glass hole: Yes

37.651 Ft
without VAT
47.817 Ft
with VAT
PCS
Stock availability
SK Krompachy > 10
HU Nagytarcsa 0

Kapcsolat

Adjon meg néhány általános információt a szállítási és kézbesítési irányelveiről.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products In sets

Description

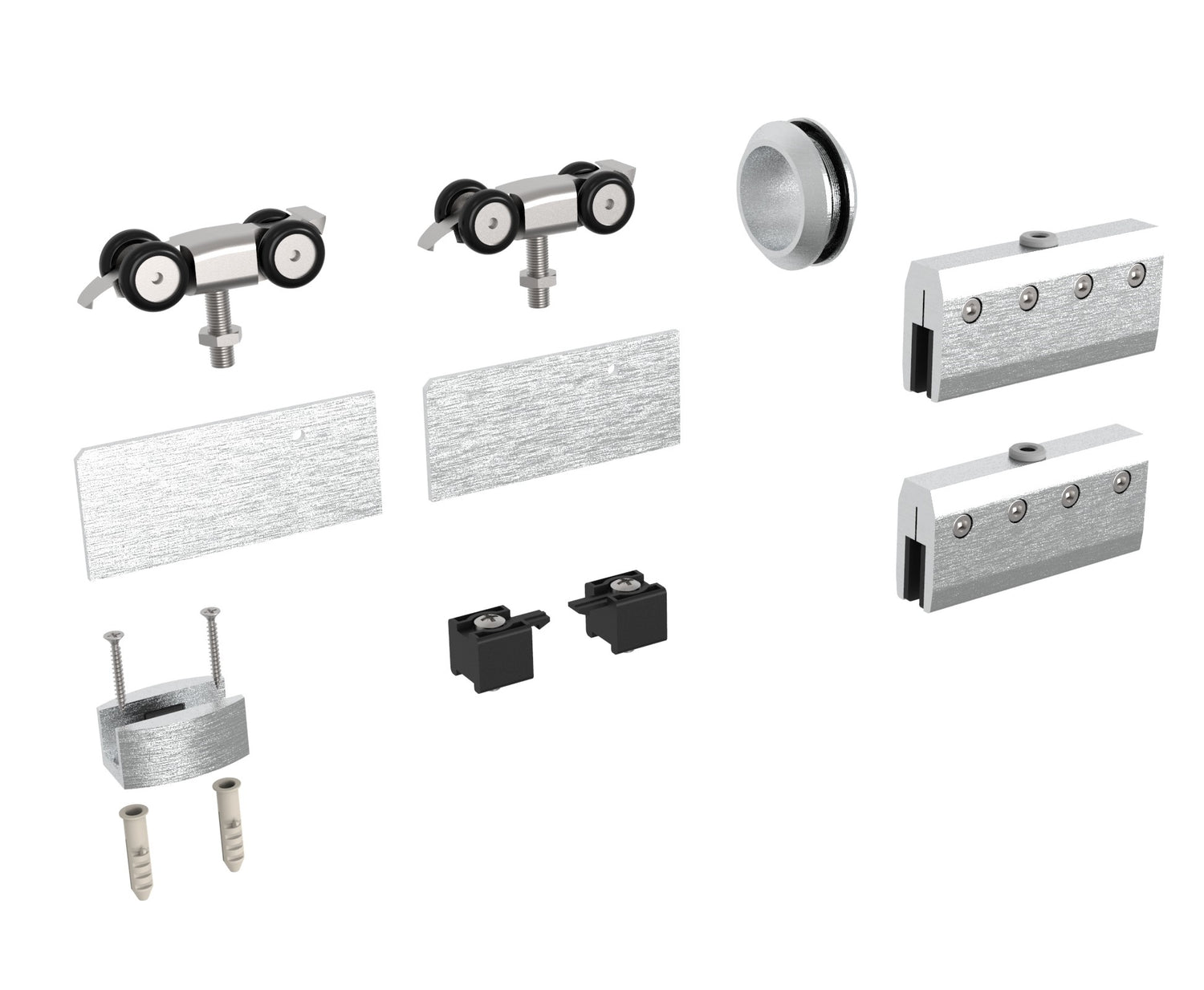

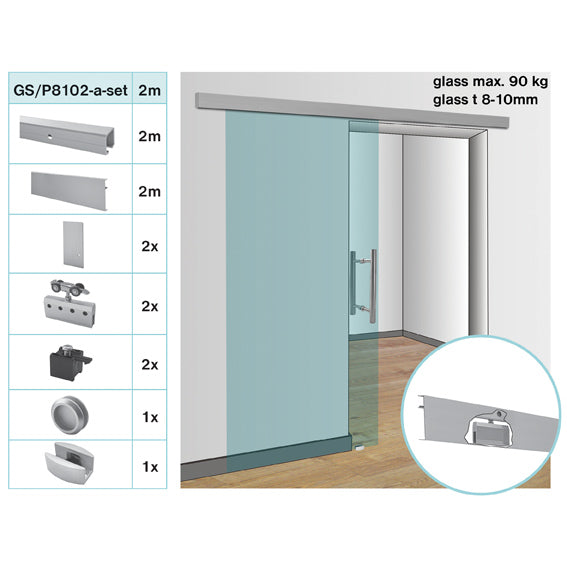

Set of fitting for glass door consist of 1pc al profile, 2pc end stop, 2x stopper, 1pc cover, 2pc glass hanger.

Parameters

Kovanie - Posuvné dvere-lišta, AL
Material
Defines the material from which the product is made.
Aluminium
Surface finish
Surface finish of product
Anodized
Glass t
Determines the thickness of the glass in mm the product is suitable for
8-10
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
max. 80kg
L
Length parameter of the product
2000
Anchoring
Určuje materiál, na ktorý sa ukotvuje daná položka.
Wall
Self closing mechanism
No
Glass hole
Yes

Download

PDF

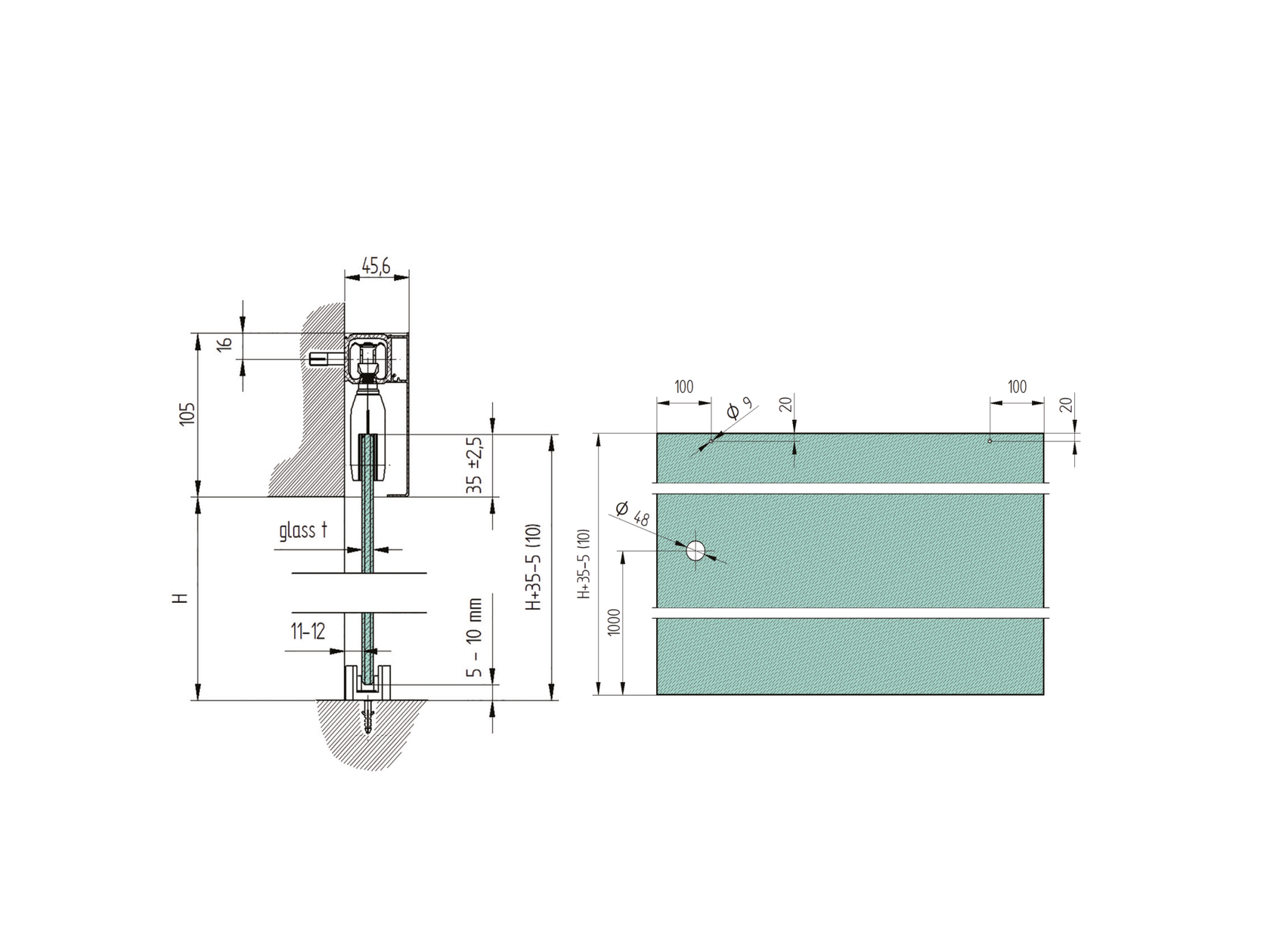

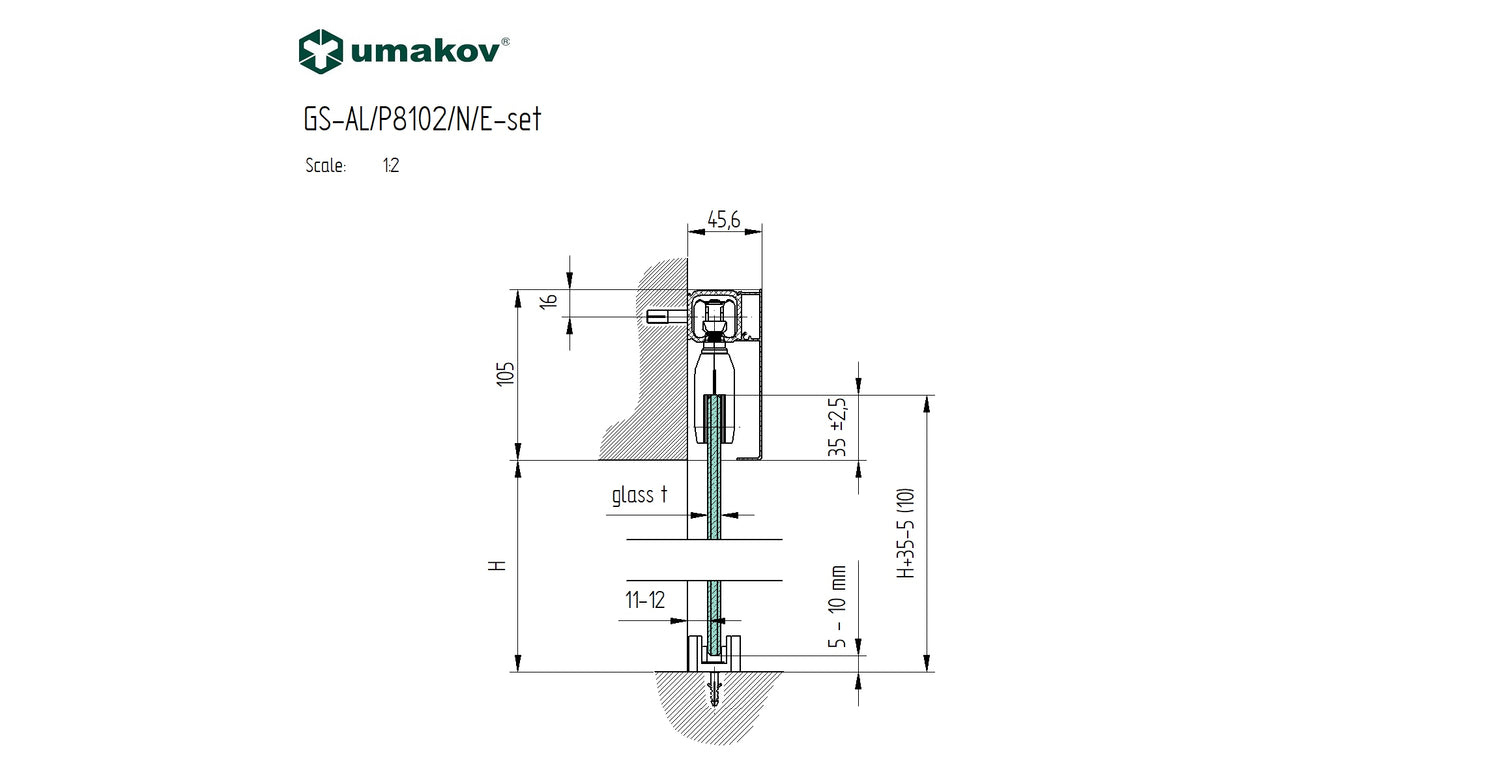

Parametric drawing
PDF
Instalation manual

Catalog list

Alternative products

Accessories for GS-AL/P8106/N/E

Accessories for GS-AL/P8106/N/E GS-AL/P8105

Material
Aluminium
Surface finish
Raw
57.030 Ft
without VAT
72.428 Ft with VAT
Very low stock (6 units)
Product available only in sets
Alternatives
Sets
Aluminum profile AL-Elox 21x27 mm Aluminum profile AL-Elox 21x27 mm

Aluminum profile AL-Elox 21x27 mm GS-AL/P8106-DIEL

Material
Aluminium
Surface finish
Raw
60.807 Ft
without VAT
77.225 Ft with VAT
Very low stock (2 units)
Product available only in sets
Fittings - sliding glass doors - aluminium rail Fittings - sliding glass doors - aluminium rail

Fittings - sliding glass doors - aluminium rail GS-AL/P8105/N/E-set

Material
Aluminium
Surface finish
Anodized
Recommended weight of the wing
max. 80kg
149.120 Ft
without VAT
189.382 Ft with VAT
Very low stock (6 units)
SET
Fittings - sliding doors - AL profile AL
umakov-hu

Fittings - sliding doors - AL profile AL

37.651 Ft
Set of fitting for glass door consist of 1pc al profile, 2pc end stop, 2x stopper, 1pc cover, 2pc glass hanger.
