Catalog

YAD01ZN1800X1,50/6005H

Galvanized post 60x40mm with PVC cap, 1800mm - Green RAL 6005

Name: Galvanized post 60x40mm with PVC cap, 1800mm - Green RAL 6005
Brand: umakov.hu
SKU: YAD01ZN1800X1,50/6005H
Availability: OutOfStock

Material: Steel, Surface finish: Zn+PVC, Effect: Green RAL 6005, L: 1800

0 Ft

without VAT

0 Ft

with VAT

Kapcsolat

Adjon meg néhány általános információt a szállítási és kézbesítési irányelveiről.

lubomir.petruska@umakov.sk

+421915093533 +393483490444

Description

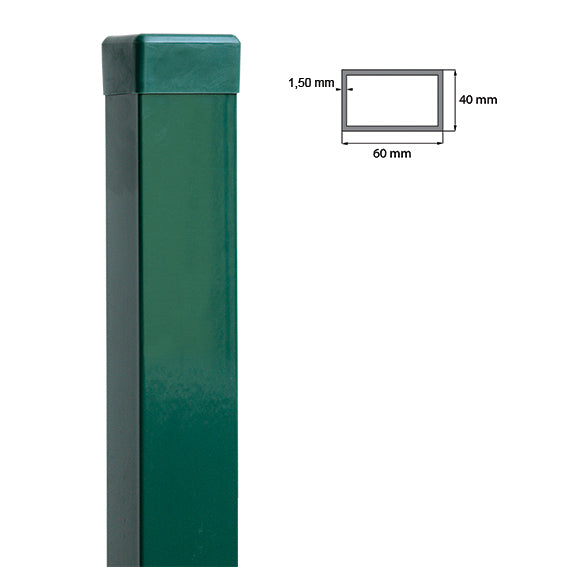

Galvanized post 60x40 mm without base plate with PVC cap, 1800 mm – Green RAL 6005

Product code: YAD01ZN1800X1,50/6005H

Steel fence post with a cross-section of 60×40 mm, wall thickness of 1.5 mm, without an anchoring base plate and with a PVC cap. It is designed for mounting fence panels and other types of fencing, primarily for embedding and concreting into the ground. Thanks to the Zn surface treatment with subsequent powder coating, it is suitable for long-term outdoor use.

Material
• Steel profile with surface treatment.
• PVC cap for post termination.

Surface finish
• Zn surface treatment with subsequent powder coating in Green RAL 6005 shade.
• Durable surface finish suitable for outdoor use.
• Increased resistance to corrosion and weather conditions.

Dimensions
• Post cross-section: 60×40 mm.
• Length: 1800 mm (1.8 m).
• Wall thickness: 1.5 mm.
• Post type: without base plate.

Installation and compatibility
• Designed for embedding and concreting into the ground.
• The recommended minimum concreting depth for the post is 500 mm.
• For higher or more heavily loaded fencing, or in unstable soil, the embedding depth must be adjusted to specific conditions.
• During installation, the post is placed in the prepared opening, leveled to a vertical position, and then concreted.

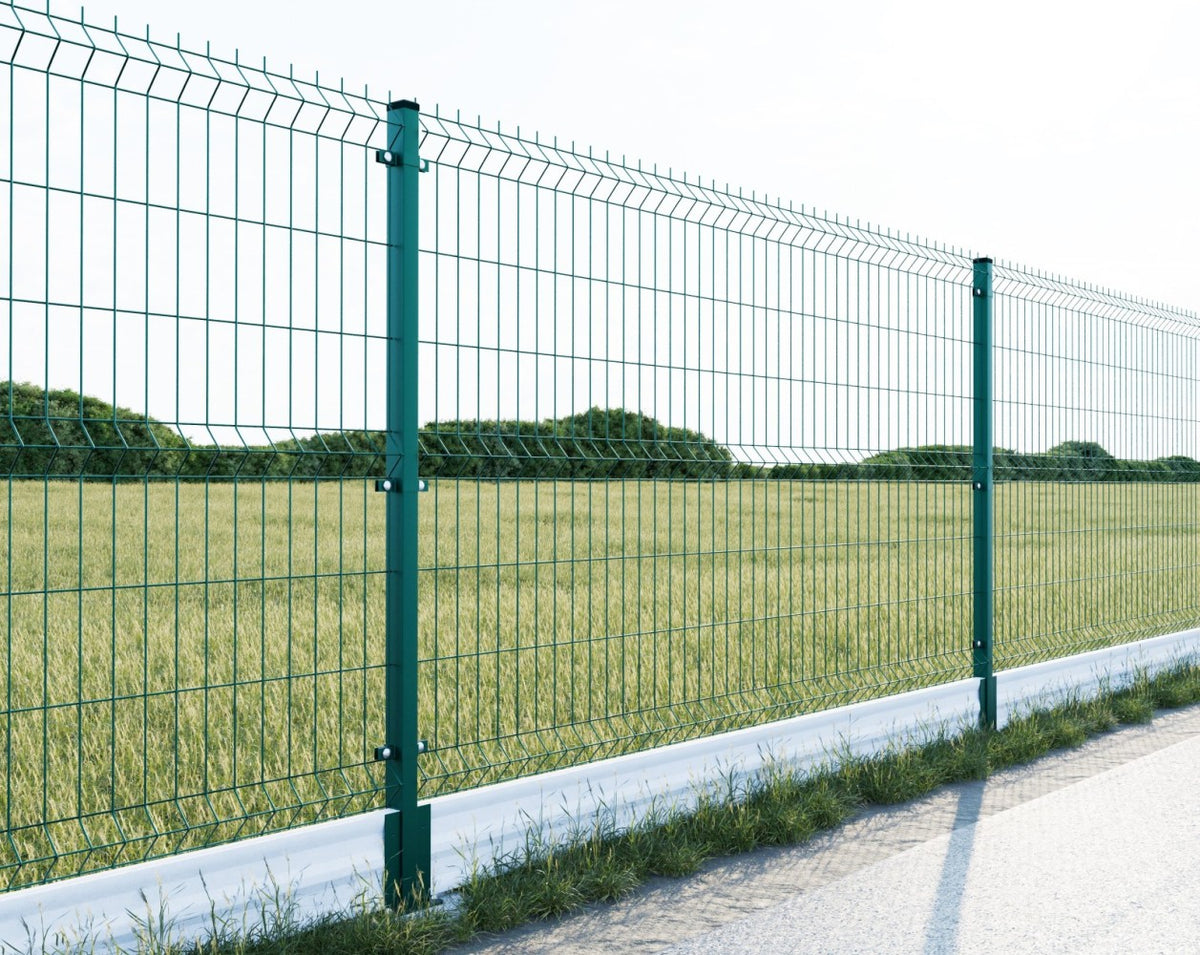

• Suitable for mounting welded fence panels and other types of fence infills.
• Possibility of anchoring clamps (product code YAF01ZN04-01...), brackets (product code YAF01ZN04-01-02...), corner clamps (product code YAF01ZN03-60X40...), continuous clamps (product code YAF01ZN01-60X40...) and end clamps (product code YAF01ZN01-60X40...) for attaching welded fence panels (product code YAA01ZN0830x4,0...).
• Possibility of anchoring adapters: MODEL 20 (product code FG/AL20U...), MODEL 20PRO (product code FG/A20...), MODEL 20PV (product code FG/AT16...), MODEL 20/18/16/14 (product code FG/A20x14...), MODEL 20/22/24/26 (product code FG/A20x26...), for infills with a width of 20 mm.
• Compatibility with base plate (product code YAF04ZN02-060X040/6005-G) and (product code YAF04ZN02-060X040/6005-M). A separate base plate allows the post to be mounted on solid surfaces such concrete foundations, walls, terraces, parking lots, or other stable surfaces.

Advantages
• Robust steel construction with 1.5 mm wall thickness.
• Suitable for embedding and concreting into the ground.
• Can also be used with a separate base plate when mounting on a solid surface.
• Zn surface treatment and powder coating ensure increased corrosion resistance.
• Modern green RAL 6005 appearance.
• Universal use for various types of fencing.
• Supplied with PVC cap.
• Minimal maintenance – regular cleaning is sufficient.
