Catalog
A-PVD/0747-FLEX2

Glass adapter

Material: Stainless steel AISI 304, Surface finish: Satined-PVD, Glass t: 8-17,52, Filling: Glass, Post: flat, Effect: Black, Model: Model 47, Phi: flat, Glass hole: 20

4.423 Ft
without VAT
5.617 Ft
with VAT
PCS
Stock availability
SK Krompachy > 750
HU Nagytarcsa > 100
Incoming stock
Calendar Icon Expected arrival Box Icon Quantity
06.07.2026 > 750

Kapcsolat

Adjon meg néhány általános információt a szállítási és kézbesítési irányelveiről.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products In sets

Description

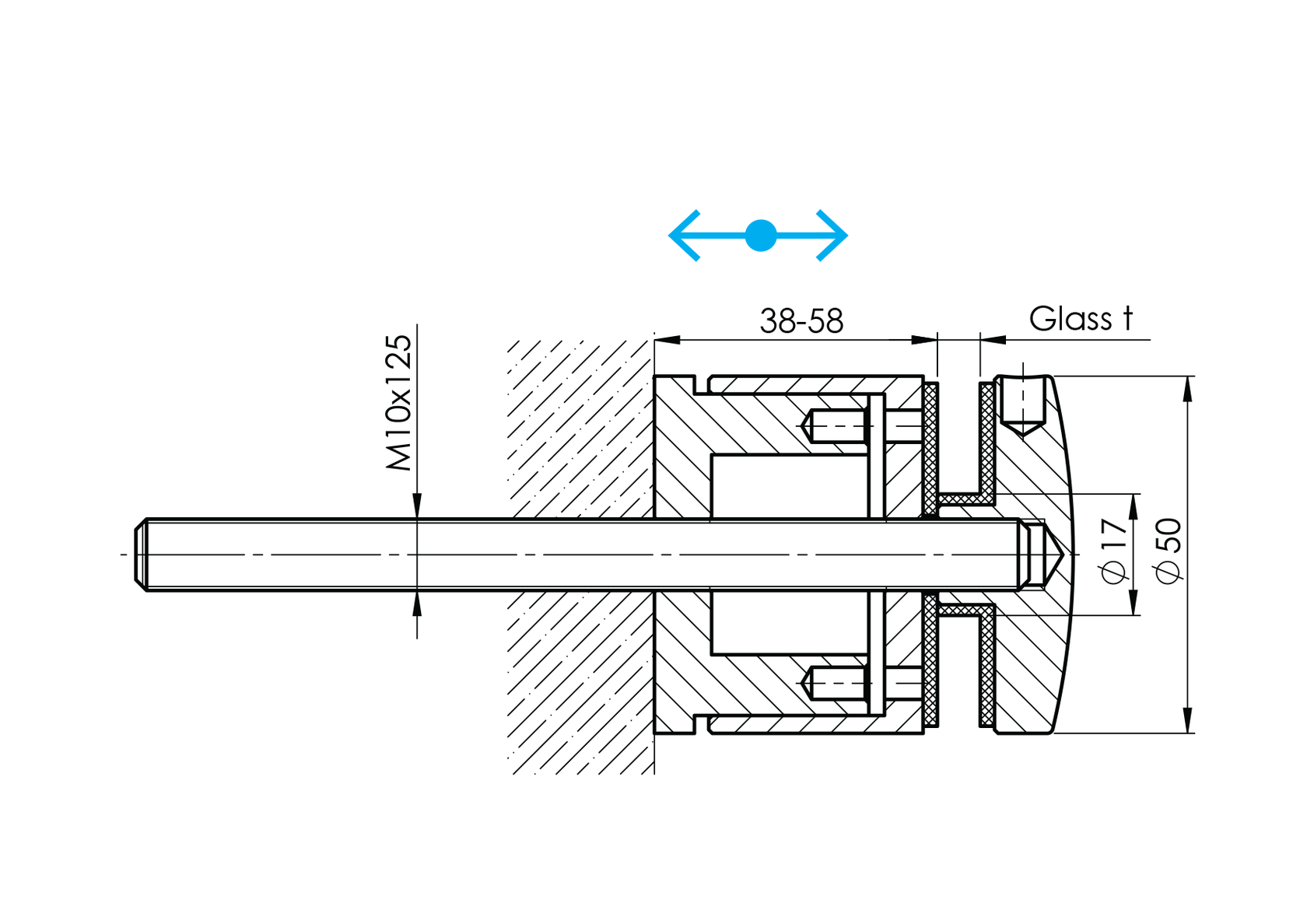

The glass infill point holder is a special construction element used to fix the glass infill to the frame or structure without the use of traditional bar holders. These holders are usually in the shape of a round or square spike that is fixed into the substrate and holds the glass using a small contact point. They provide a minimalist look as they do not require extensive mouldings or frames to surround the glass. This design allows for maximum use of light and openness of space, making them ideal for modern and minimalist architectural applications. They are particularly used in interior and exterior applications such as railings, balustrades, doors, walls and other structures where a modern and elegant look is desired. The FLEX2 point bracket allows the distance of the glass from the wall to be adjusted, making it possible to compensate for unevenness during installation. For easier matching with other range also available in black.

Parameters

Držiak výplne skla
Material
Defines the material from which the product is made.
Stainless steel AISI 304
Surface finish
Surface finish of product
Satined-PVD
Glass t
Determines the thickness of the glass in mm the product is suitable for
8-17,52
Filling
Determines use based on the size and shape of the infill
Glass
Effect
Vyberte si farebný odtieň.
Black
Model
Model 47
Post
Determines use based on the size and shape of the post
flat
Glass hole
20
Phi
flat
