A14/2200-048-L

Glass clamp

Material: Stainless steel AISI 316, Surface finish: Polished, Filling: Glass+Sheet metal, Glass t: 8/8,76/10/10,76/1,5/2/3, Post: D48,3, Model: Model 22, Phi: 48,3

3.253 Ft
without VAT
4.131 Ft
with VAT


PCS
Stock availability
SK Krompachy > 500
HU Nagytarcsa 0

Kapcsolat

Adjon meg néhány általános információt a szállítási és kézbesítési irányelveiről.

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Description

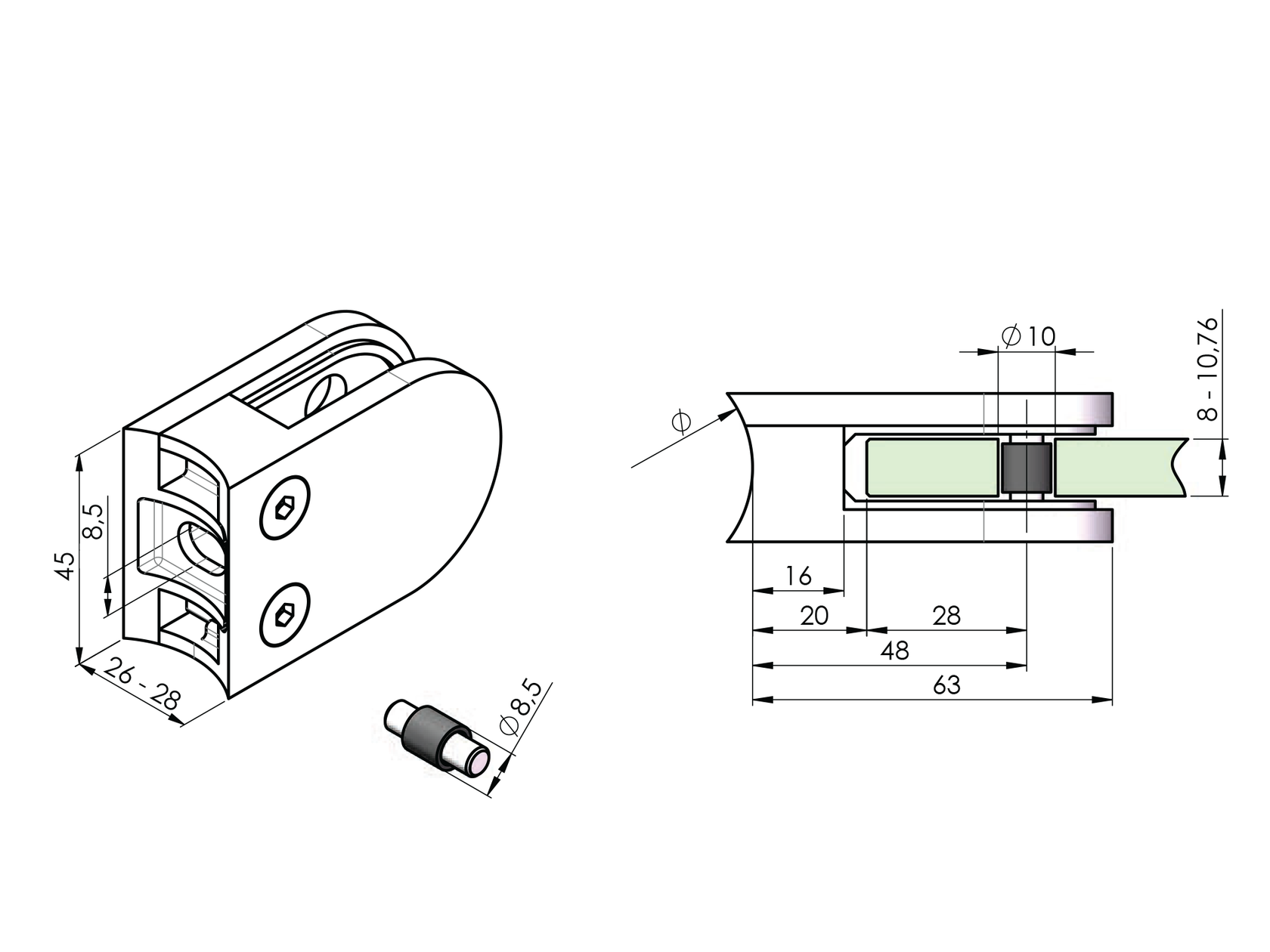

Glass fill holder (sheet metal, panel fill). Glass retention (protection against falling out): clamping connection (recommended use for top mounting) or clamping connection + pin (recommended use for side mounting). The holder does not include sealing (need to purchase 2 seals according to glass thickness) and covers for screws.

Parameters

Material
Defines the material from which the product is made.
Stainless steel AISI 316
Surface finish
Surface finish of product
Polished
Glass t
Determines the thickness of the glass in mm the product is suitable for
8/8,76/10/10,76/1,5/2/3
Filling
Determines use based on the size and shape of the infill
Glass+Sheet metal
Post
Determines use based on the size and shape of the post
D48,3
Model
Model 22
Phi
48,3

Catalog list

Required products

End cap PVC - glossy surface A19/04-PVC-L

Material
Plastic
Effect
Silver
14 Ft
without VAT
18 Ft with VAT
In stock (13697 units)
PCS

Rubber inlay for glass clamp A19/22-008

Material
Rubber
Surface finish
Raw
Glass t
8
46 Ft
without VAT
58 Ft with VAT
In stock (221330 units)
PCS
Alternatives

Rubber inlay for glass clamp A19/25-010

Material
Rubber
Surface finish
Raw
Glass t
10
55 Ft
without VAT
70 Ft with VAT
In stock (35947 units)
PCS

Rubber inlay for glass clamp A19/22-009

Material
Rubber
Surface finish
Raw
Glass t
8,76
46 Ft
without VAT
58 Ft with VAT
In stock (266740 units)
PCS
Alternatives
Sets

Rubber inlay for glass clamp A19/25-011

Material
Rubber
Surface finish
Raw
Glass t
10,76
55 Ft
without VAT
70 Ft with VAT
In stock (109572 units)
PCS

Stainless steel pole, VK-straight, right A-VR100-2GR

Material
Stainless steel AISI 304
Surface finish
Satined
Glass t
8,76
15.114 Ft
without VAT
19.195 Ft with VAT
In stock (315 units)
PCS

Stainless steel pole, VK-straight, left A-VR100-2GL

Material
Stainless steel AISI 304
Surface finish
Satined
Glass t
8,76
14.906 Ft
without VAT
18.931 Ft with VAT
In stock (257 units)
PCS

Baluster post inox A-VR100-4G

Material
Stainless steel AISI 304
Surface finish
Satined
Glass t
8,76
17.628 Ft
without VAT
22.388 Ft with VAT
In stock (620 units)
PCS

Stainless steel pole - BK, straight A-BR100-4G

Material
Stainless steel AISI 304
Surface finish
Satined
Glass t
8,76
18.498 Ft
without VAT
23.492 Ft with VAT
In stock (302 units)
PCS

Stainless steel pole, VK-straight A-VR100-4G90

Material
Stainless steel AISI 304
Surface finish
Satined
Glass t
8,76
18.014 Ft
without VAT
22.878 Ft with VAT
In stock (281 units)
PCS

Baluster post inox AISI304, D42,4x2/4xmodel22/H110 A-VR110-4G

Material
Stainless steel AISI 304
Surface finish
Satined
Glass t
8,76
18.506 Ft
without VAT
23.503 Ft with VAT
In stock (60 units)
PCS

Stainless steel pole, VK-straight AISI316, D42,4/2 A14-VR110-2GL

Material
Stainless steel AISI 316
Surface finish
Satined
L
1100
19.397 Ft
without VAT
24.634 Ft with VAT
Very low stock (1 unit)
PCS

Baluster post inox AISI316, D42,4x2/4xmodel22/H110 A14-VR110-4G

Material
Stainless steel AISI 316
Surface finish
Satined
Glass t
8,76
Out of stock
20.394 Ft
without VAT
25.900 Ft with VAT
Backordered
PCS

Stainless steel pole, VK-straight, right AISI316, A14-VR110-2GR

Material
Stainless steel AISI 316
Surface finish
Satined
Glass t
8-10,76
19.397 Ft
without VAT
24.634 Ft with VAT
Very low stock (1 unit)
PCS

Baluster post inox AISI304, D42,4x2/4xmodel22/H110 A14-VR110-4G90

Material
Stainless steel AISI 316
Surface finish
Satined
Glass t
8-10,76
Out of stock
20.697 Ft
without VAT
26.285 Ft with VAT
Backordered
PCS

Stainless steel pole, VK-straight, right AISI304, A14-VR110-2GR-L

Material
Stainless steel AISI 316
Surface finish
Polished
Glass t
8-10,76
Out of stock
20.480 Ft
without VAT
26.010 Ft with VAT
Backordered
PCS

Stainless steel pole, VK-straight, right AISI316, A14-VR110-2GL-L

Out of stock
20.480 Ft
without VAT
26.010 Ft with VAT
Backordered
PCS

Baluster post inox AISI304, D42,4x2/4xmodel22/H110 A14-VR110-4G-L

Material
Stainless steel AISI 316
Surface finish
Polished
Glass t
8-10,76
Out of stock
22.614 Ft
without VAT
28.720 Ft with VAT
Backordered
PCS

Baluster post inox AISI304, D42,4x2/4xmodel22/H110 A14-VR110-4G90-L

Out of stock
22.906 Ft
without VAT
29.091 Ft with VAT
Backordered
PCS

Post, BK-flat, left, AISI316, D42,4/2xmodel22/H1100mm A14-BR110-2GL

Material
Stainless steel AISI 316
Surface finish
Satined
Glass t
8-10,76
22.167 Ft
without VAT
28.152 Ft with VAT
Very low stock (1 unit)
PCS

Post, BK-rovina, right, AISI316, D42,4/2xmodel22/H1100mm A14-BR110-2GR

Material
Stainless steel AISI 316
Surface finish
Satined
Glass t
8-10,76
22.167 Ft
without VAT
28.152 Ft with VAT
Very low stock (1 unit)
PCS

Post, BK-flat, Corner - inner corner, AISI316, D42.4/4xmodel22/H1100mm A14-BR110-4G90-IN

Material
Stainless steel AISI 316
Surface finish
Satined
Glass t
8-10,76
Out of stock
24.780 Ft
without VAT
31.471 Ft with VAT
Backordered
PCS

Post, BK-flat, corner - outer corner, AISI316, D42.4/4xmodel22/H1100mm A14-BR110-4G90-OUT

Material
Stainless steel AISI 316
Surface finish
Satined
Glass t
8-10,76
25.078 Ft
without VAT
31.849 Ft with VAT
Very low stock (1 unit)
PCS

Post, BK-flat, double-sided, AISI316, D42,4/4xmodel22/H1100mm A14-BR110-4G

Material
Stainless steel AISI 316
Surface finish
Satined
Glass t
8-10,76
23.202 Ft
without VAT
29.467 Ft with VAT
Very low stock (2 units)
PCS

Rubber inlay for glass clamp A19/22-010

Material
Rubber
Surface finish
Raw
Glass t
10
46 Ft
without VAT
58 Ft with VAT
In stock (140530 units)
PCS
Alternatives

Rubber inlay for glass clamp model A19/25-012

Material
Rubber
Surface finish
Raw
Glass t
12
55 Ft
without VAT
70 Ft with VAT
In stock (15751 units)
PCS

Rubber inlay for glass clamp A19/22-011

Material
Rubber
Surface finish
Raw
Glass t
10,76
46 Ft
without VAT
58 Ft with VAT
In stock (138724 units)
PCS
Alternatives

Rubber inlay for glass clamp A19/25-013

Material
Rubber
Surface finish
Raw
Glass t
12,76
55 Ft
without VAT
70 Ft with VAT
In stock (38254 units)
PCS

Rubber A19/22-003

Material
Rubber
Surface finish
Raw
Glass t
3
80 Ft
without VAT
102 Ft with VAT
In stock (13813 units)
PCS

Rubber A19/22-002

Material
Rubber
Surface finish
Raw
Glass t
2
79 Ft
without VAT
100 Ft with VAT
In stock (15267 units)
PCS

Rubber A19/22-0015

Material
Rubber
Surface finish
Raw
Glass t
1,5
79 Ft
without VAT
100 Ft with VAT
In stock (9543 units)
PCS

Hexagon socket button head screw, AISI316, M8x20 A4-DIN 7380 M8x20

Material
Stainless steel AISI 316
Surface finish
Raw
L
20
163 Ft
without VAT
207 Ft with VAT
In stock (4520 units)
PCS
Alternatives

Hexagon socket button head screw, AISI304, M8x20 A-DIN 7380-A2 M8x20

Material
Stainless steel AISI 304
Surface finish
Raw
L
20
57 Ft
without VAT
72 Ft with VAT
In stock (145775 units)
PCS
