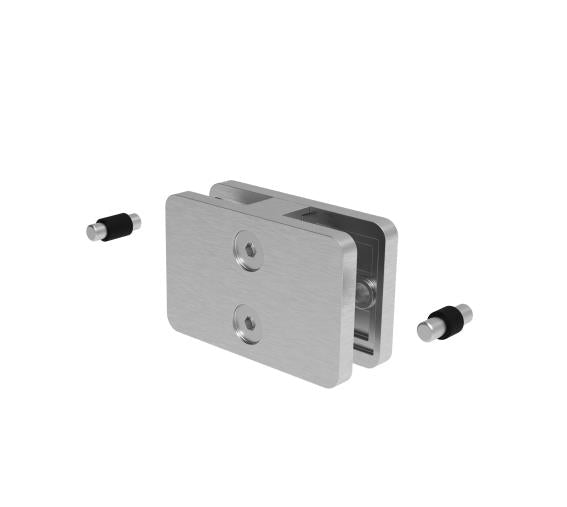

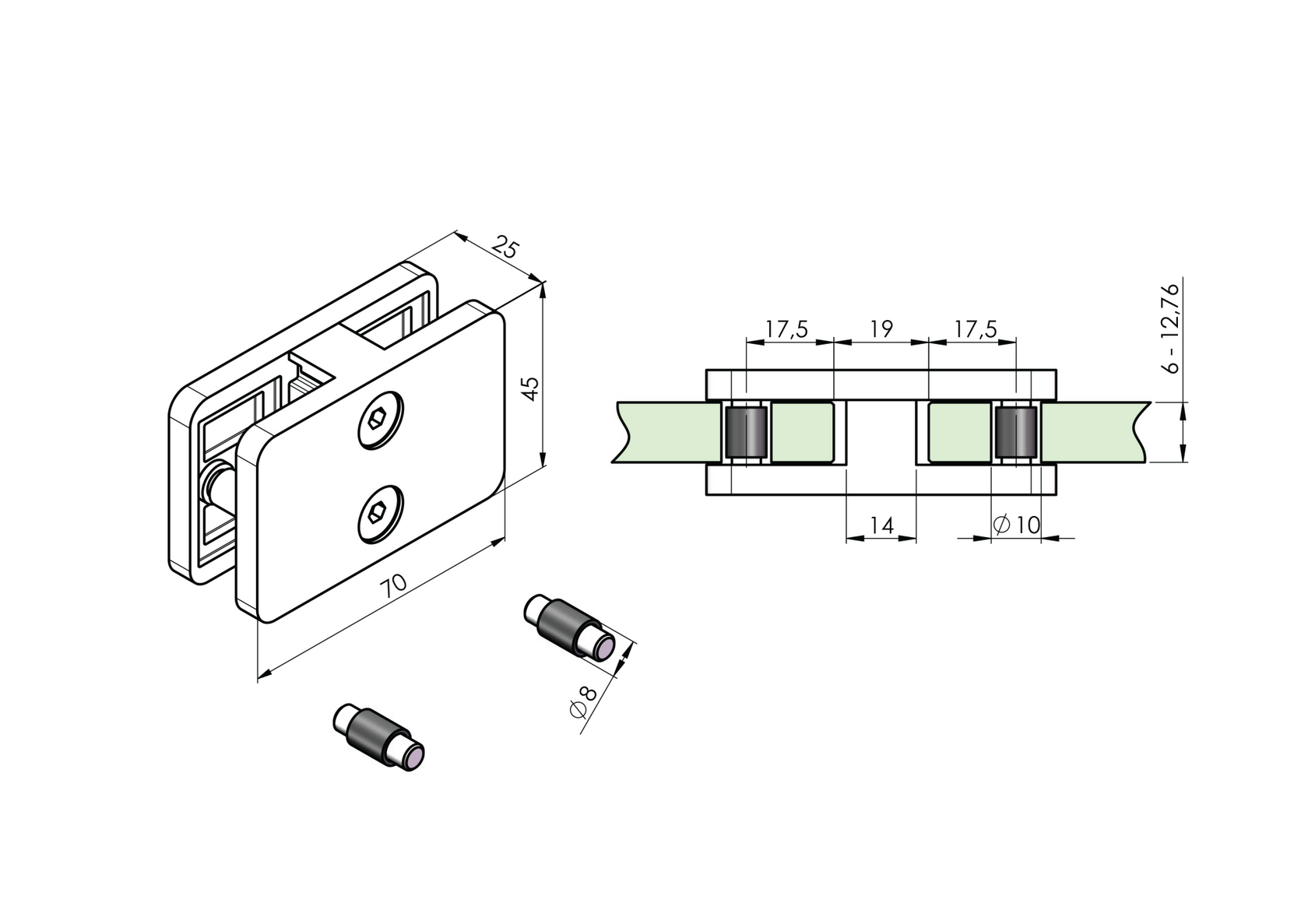

A14/230P-700

Glass clamp

Material: Stainless steel AISI 316, Surface finish: Satined, Filling: Glass+Sheet metal, Glass t: 6/6,76/8/8,76/10/10,76/12/12,76/1,5/2/3/4/5, Model: Model 230P-700

3.752 Ft
without VAT
4.765 Ft
with VAT


PCS
Stock availability
SK Krompachy > 1500
HU Nagytarcsa 23

Kapcsolat

Adjon meg néhány általános információt a szállítási és kézbesítési irányelveiről.

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Description

A glass (sheet metal, plate) infill holder is a structural element used to fasten and stabilize glass or sheet infill in various constructions, such as railings, balconies or stairs. This holder ensures a firm and secure attachment of the filling, thus increasing the overall stability and safety of the structure. They are part of modern architectural solutions that combine functionality, safety and aesthetic appearance. When choosing a holder, it is important to consider its material, design, functionality and compatibility with a specific filling and overall construction. It serves as a coupling to connect the filling, the holding of the filling (insurance against falling out) is achieved by means of a clamping joint (recommended use for top anchoring) or a clamping joint + colic (recommended use for side anchoring). The holder does not include a seal (necessity to buy 4 pcs of seals according to the thickness of the glass) and caps for the screws.

Parameters

Material
Defines the material from which the product is made.
Stainless steel AISI 316
Surface finish
Surface finish of product
Satined
Glass t
Determines the thickness of the glass in mm the product is suitable for
6/6,76/8/8,76/10/10,76/12/12,76/1,5/2/3/4/5
Filling
Determines use based on the size and shape of the infill
Glass+Sheet metal
Model
Model 230P-700
