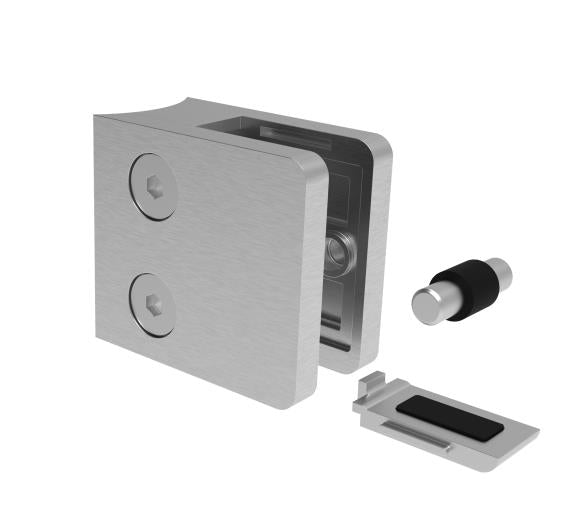

A14/23KP-042

Glass clamp

Material: Stainless steel AISI 316, Surface finish: Satined, Filling: Glass+Sheet metal, Glass t: 8/8,76/10/10,76/12/12,76/3,5/4/5, Model: Model 23KP, Post: D42,4

2.258 Ft
without VAT
2.868 Ft
with VAT


PCS
Stock availability
SK Krompachy > 500
HU Nagytarcsa 0

Kapcsolat

Adjon meg néhány általános információt a szállítási és kézbesítési irányelveiről.

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Description

Glass filling holder (sheet metal, panel filling). Holding the glass (insurance against falling out): clamping joint (recommended use for top mounting) or clamping joint + pin (recommended use for side mounting) or clamping joint + safety plate with lock during installation - protection against plate falling out (recommended use for side mounting). The holder does not include a gasket (it is necessary to purchase 2 gaskets according to the thickness of the glass) and covers for the screws.

Parameters

Material
Defines the material from which the product is made.
Stainless steel AISI 316
Surface finish
Surface finish of product
Satined
Glass t
Determines the thickness of the glass in mm the product is suitable for
8/8,76/10/10,76/12/12,76/3,5/4/5
Filling
Determines use based on the size and shape of the infill
Glass+Sheet metal
Model
Model 23KP
Post
Determines use based on the size and shape of the post
D42,4
