Catalog
H/02-80x80-Zn-D-3000

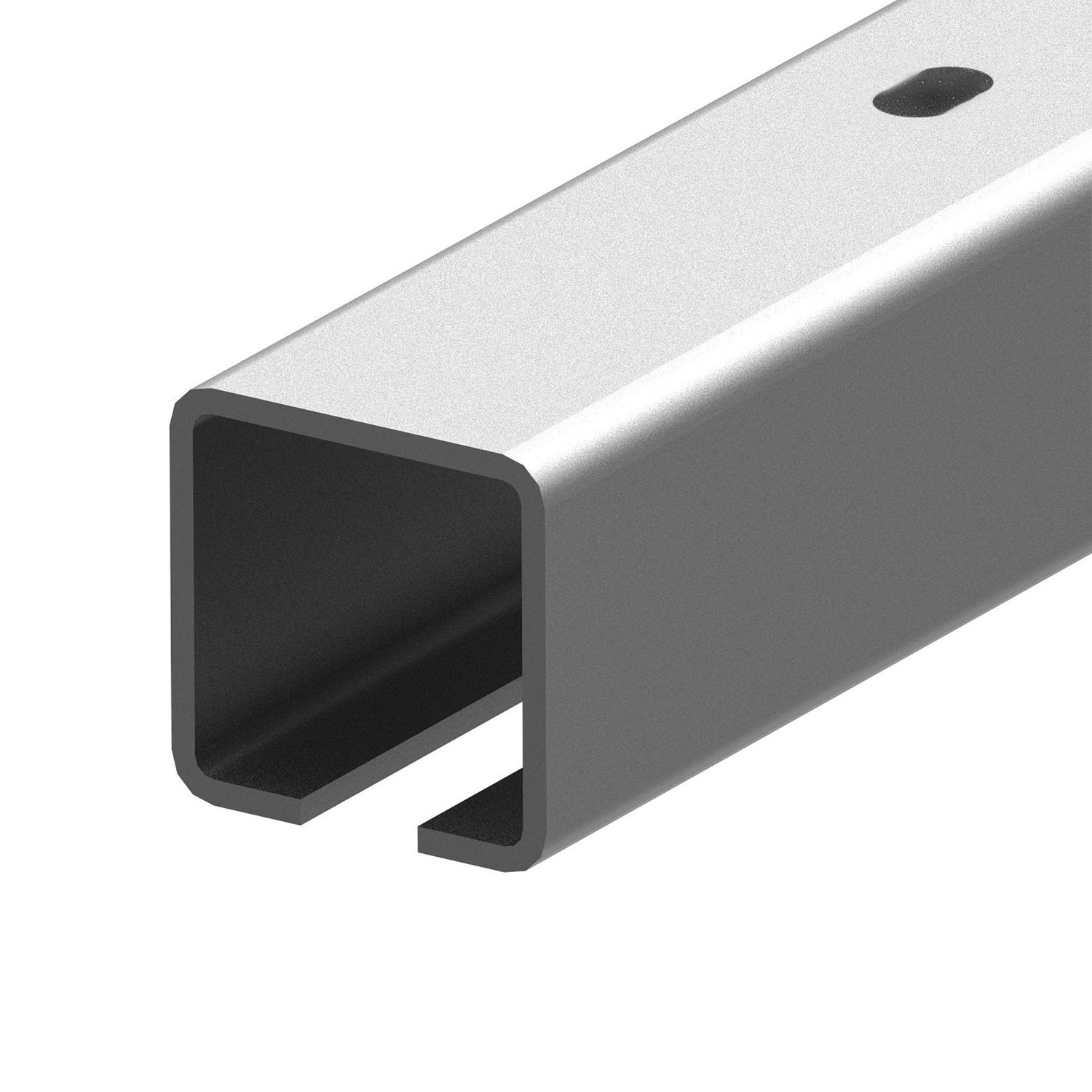

Guide profile with holes Zn, 78x78x4mm, L3m

Material: Steel, Surface finish: Galvanized, Mark: Umakov, Profile dimensions (mm): 80x80, L: 3000

23.734 Ft
without VAT
30.142 Ft
with VAT
PCS
Stock availability
SK Krompachy > 10
HU Nagytarcsa 0

Kapcsolat

Adjon meg néhány általános információt a szállítási és kézbesítési irányelveiről.

lubomir.petruska@umakov.sk
+421915093533 +393483490444
Description Parameters Download Parts of set Catalog list Required products Related products Alternative products In sets

Description

Guide profile for bottom guiding of cantilever sliding gates with Zn surface treatment, dimension 78x78x4mm, designed for welding or screwing onto the gate frame. Supplied in 3m pieces. Also available in 6m pieces (cat. no. H/02-80x80-Zn-6000)

Parameters

Pozinkovaný oceľový vodiaci spodný profil s otvormi pre samonosnú posuvnú bránu 78×78 mm – 3,0 m
Material
Defines the material from which the product is made.
Steel
Surface finish
Surface finish of product
Galvanized
Mark
Information about producer of product
Umakov
Profile dimensions (mm)
The dimensional series of the guide ensures compatibility of the guide profile, wheels, and accessories
80x80
L
Length parameter of the product
3000

Download

PDF

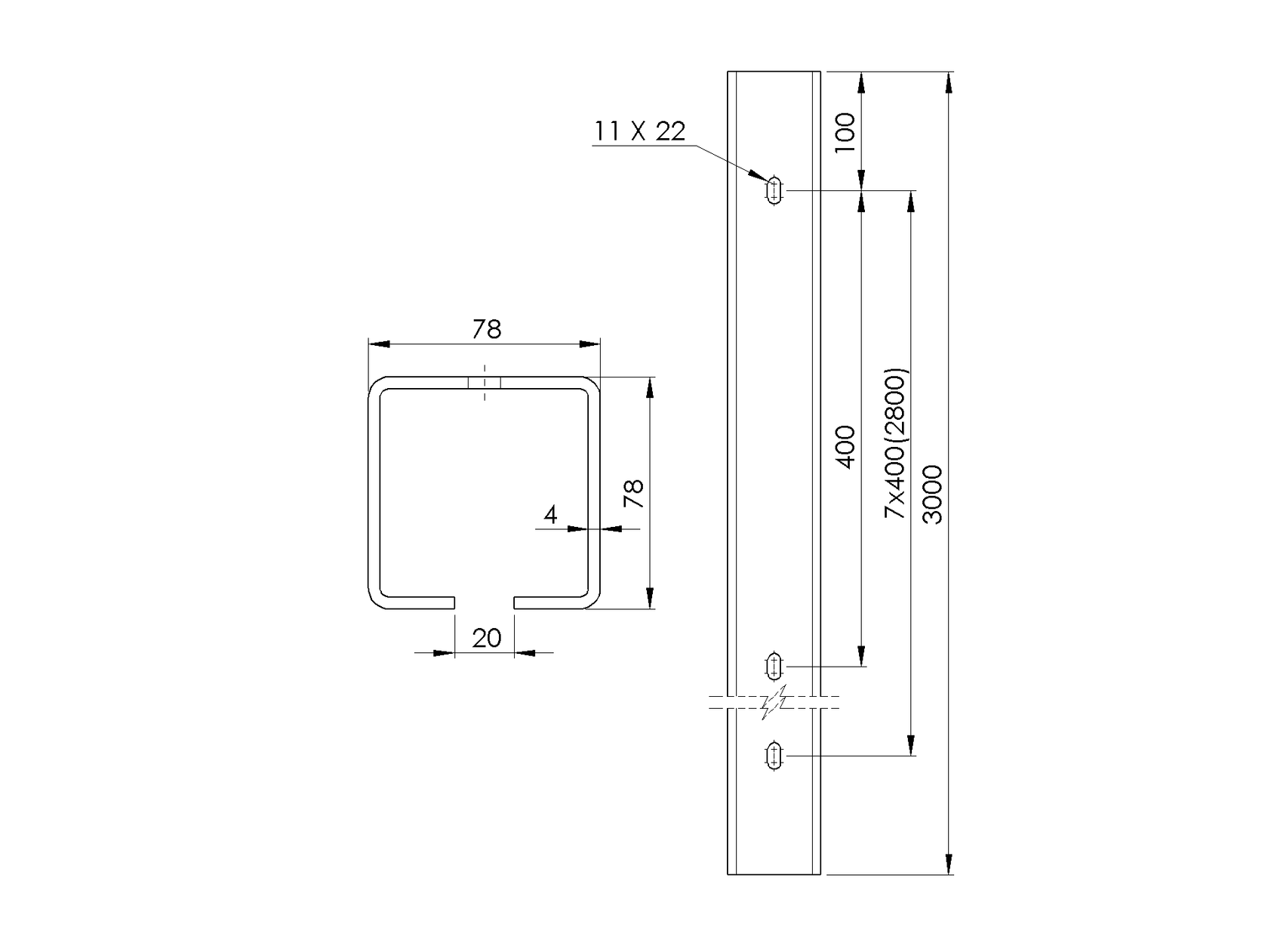

Parametric drawing

Catalog list

Alternative products

Galvanized Steel Bottom Guide Profile for Cantilever Sliding Gate 78 × 78 mm – 3.0 m Galvanized Steel Bottom Guide Profile for Cantilever Sliding Gate 78 × 78 mm – 3.0 m

Galvanized Steel Bottom Guide Profile for Cantilever Sliding Gate 78 × 78 mm – 3.0 m H/02-80x80-Zn-3000

Material
Steel
Surface finish
Galvanized
Mark
Umakov
22.506 Ft
without VAT
28.583 Ft with VAT
In stock (162 units)
PCS
Alternatives
Related products
Sets
Technical info
Guide profile with holes Zn, 78x78x4mm, L3m

Guide profile with holes Zn, 78x78x4mm, L3m H/02-80x80-Zn-D-3000

Material
Steel
Surface finish
Galvanized
Mark
Umakov
23.734 Ft
without VAT
30.142 Ft with VAT
In stock (73 units)
PCS
Galvanized Steel Bottom Guide Profile for Cantilever Sliding Gate 78 × 78 mm – 3.0 m Galvanized Steel Bottom Guide Profile for Cantilever Sliding Gate 78 × 78 mm – 3.0 m

Galvanized Steel Bottom Guide Profile for Cantilever Sliding Gate 78 × 78 mm – 3.0 m H/02-80x80-Zn-6000

Material
Steel
Surface finish
Galvanized
Mark
Umakov
Required products
44.603 Ft
without VAT
56.646 Ft with VAT
In stock (555 units)
PCS
Bottom guide profile INOX, 76x76x3mm, L6m

Bottom guide profile INOX, 76x76x3mm, L6m H8/02-80x80-6000

Material
Stainless steel AISI 304
Surface finish
Raw
L
6000
129.694 Ft
without VAT
164.711 Ft with VAT
In stock (85 units)
PCS
Bottom guide profile INOX, 76x76x3mm, L3m

Bottom guide profile INOX, 76x76x3mm, L3m H8/02-80x80-3000

Material
Stainless steel AISI 304
Surface finish
Raw
L
3000
65.264 Ft
without VAT
82.885 Ft with VAT
In stock (191 units)
PCS
Bottom guide profile, black Fe Bottom guide profile, black Fe

Bottom guide profile, black Fe H/02-80x80-Fe-6000

Material
Steel
Surface finish
Raw
Mark
Umakov
Required products
39.083 Ft
without VAT
49.635 Ft with VAT
In stock (641 units)
PCS
Steel Bottom Guide Profile for Cantilever Sliding Gate 78×78 mm – 3.0 m Steel Bottom Guide Profile for Cantilever Sliding Gate 78×78 mm – 3.0 m

Steel Bottom Guide Profile for Cantilever Sliding Gate 78×78 mm – 3.0 m H/02-80x80-Fe-3000

Material
Steel
Surface finish
Raw
Mark
Umakov
19.142 Ft
without VAT
24.310 Ft with VAT
In stock (44 units)
PCS
Cantilever gate set SV-80x80Zn heavy

Cantilever gate set SV-80x80Zn heavy SV-80x80Zn heavy

Material
Steel
Surface finish
Galvanized
Mark
Umakov
125.867 Ft
without VAT
159.851 Ft with VAT
In stock (150 units)
SET
Bottom guide Zn, profile 80x80mm Bottom guide Zn, profile 80x80mm

Bottom guide Zn, profile 80x80mm H/15P-80

Material
Steel
Surface finish
Galvanized
Mark
Umakov
2.263 Ft
without VAT
2.874 Ft with VAT
In stock (3563 units)
PCS
Pole cover 80x80mm-PVC Pole cover 80x80mm-PVC

Pole cover 80x80mm-PVC H/258-80x80

Material
Plastic
A
80
B
80
202 Ft
without VAT
257 Ft with VAT
In stock (1486 units)
PCS
Bottom guide - ECO profile 80x80mm Bottom guide - ECO profile 80x80mm

Bottom guide - ECO profile 80x80mm SV-80x80-ECO

Material
Steel
Surface finish
Galvanized
Mark
Umakov
Required products
23.938 Ft
without VAT
30.401 Ft with VAT
In stock (4314 units)
PCS
Cantilvere sliding gate set SV-80x80BP-ECO

Cantilvere sliding gate set SV-80x80BP-ECO SV-80x80BP-ECO

Material
Steel
Surface finish
Galvanized
Required products
27.804 Ft
without VAT
35.311 Ft with VAT
In stock (271 units)
SET
Cantilever gate set SV-80x80-ECO-HEAVY

Cantilever gate set SV-80x80-ECO-HEAVY SV-80x80-ECO-HEAVY

Material
Steel
Surface finish
Galvanized
Required products
58.758 Ft
without VAT
74.623 Ft with VAT
In stock (677 units)
SET
Galvanized steel cantilever carriage Zn, profile 80x80mm Galvanized steel cantilever carriage Zn, profile 80x80mm

Galvanized steel cantilever carriage Zn, profile 80x80mm H/34-4-80x80P

Material
Steel
Surface finish
Galvanized
Mark
Umakov
Required products
11.000 Ft
without VAT
13.970 Ft with VAT
In stock (1240 units)
PCS
End wheel with cover Zn, profile 80x80, End wheel with cover Zn, profile 80x80,

End wheel with cover Zn, profile 80x80, H/14N-80x80

Material
Steel
Surface finish
Galvanized
Mark
Umakov
2.795 Ft
without VAT
3.550 Ft with VAT
In stock (3391 units)
PCS

In sets

Set for sliding gate SV-80x80Zn,D heavy

Set for sliding gate SV-80x80Zn,D heavy SV-80x80Zn-D heavy

Material
Steel
Surface finish
Galvanized
Weight of gate Gmax/Goptimal (kg)
350
129.959 Ft
without VAT
165.048 Ft with VAT
In stock (73 units)
SET
Part of set
Double support carriage Zn, profile 80x80mm Double support carriage Zn, profile 80x80mm

Double support carriage Zn, profile 80x80mm H/34-8-80x80-HEAVY

2 pcs
Material
Steel
Surface finish
Galvanized
Mark
Umakov
Required products
End wheel with cover Zn, profile 80x80, End wheel with cover Zn, profile 80x80,

End wheel with cover Zn, profile 80x80, H/14N-80x80

1 pcs
Material
Steel
Surface finish
Galvanized
Mark
Umakov
Bottom guide Zn, profile 80x80mm Bottom guide Zn, profile 80x80mm

Bottom guide Zn, profile 80x80mm H/15P-80

1 pcs
Material
Steel
Surface finish
Galvanized
Mark
Umakov
Pole cover 80x80mm-PVC Pole cover 80x80mm-PVC

Pole cover 80x80mm-PVC H/258-80x80

1 pcs
Material
Plastic
A
80
B
80
Guide profile with holes Zn, 78x78x4mm, L6m

Guide profile with holes Zn, 78x78x4mm, L6m H/02-80x80-Zn-D-6000

1 pcs
Material
Steel
Surface finish
Galvanized
Mark
Umakov
Guide profile with holes Zn, 78x78x4mm, L3m

Guide profile with holes Zn, 78x78x4mm, L3m H/02-80x80-Zn-D-3000

1 pcs
Material
Steel
Surface finish
Galvanized
Mark
Umakov
Guide profile with holes Zn, 78x78x4mm, L3m
umakov-hu

Guide profile with holes Zn, 78x78x4mm, L3m

23.734 Ft
Guide profile for bottom guiding of cantilever sliding gates with Zn surface treatment, dimension 78x78x4mm, designed for welding or screwing onto the gate frame. Supplied in 3m pieces. Also available in 6m pieces (cat. no. H/02-80x80-Zn-6000)
