Set black plastic horizontal tilting system 1.86x1.34 m with 1.2 m ...
Description

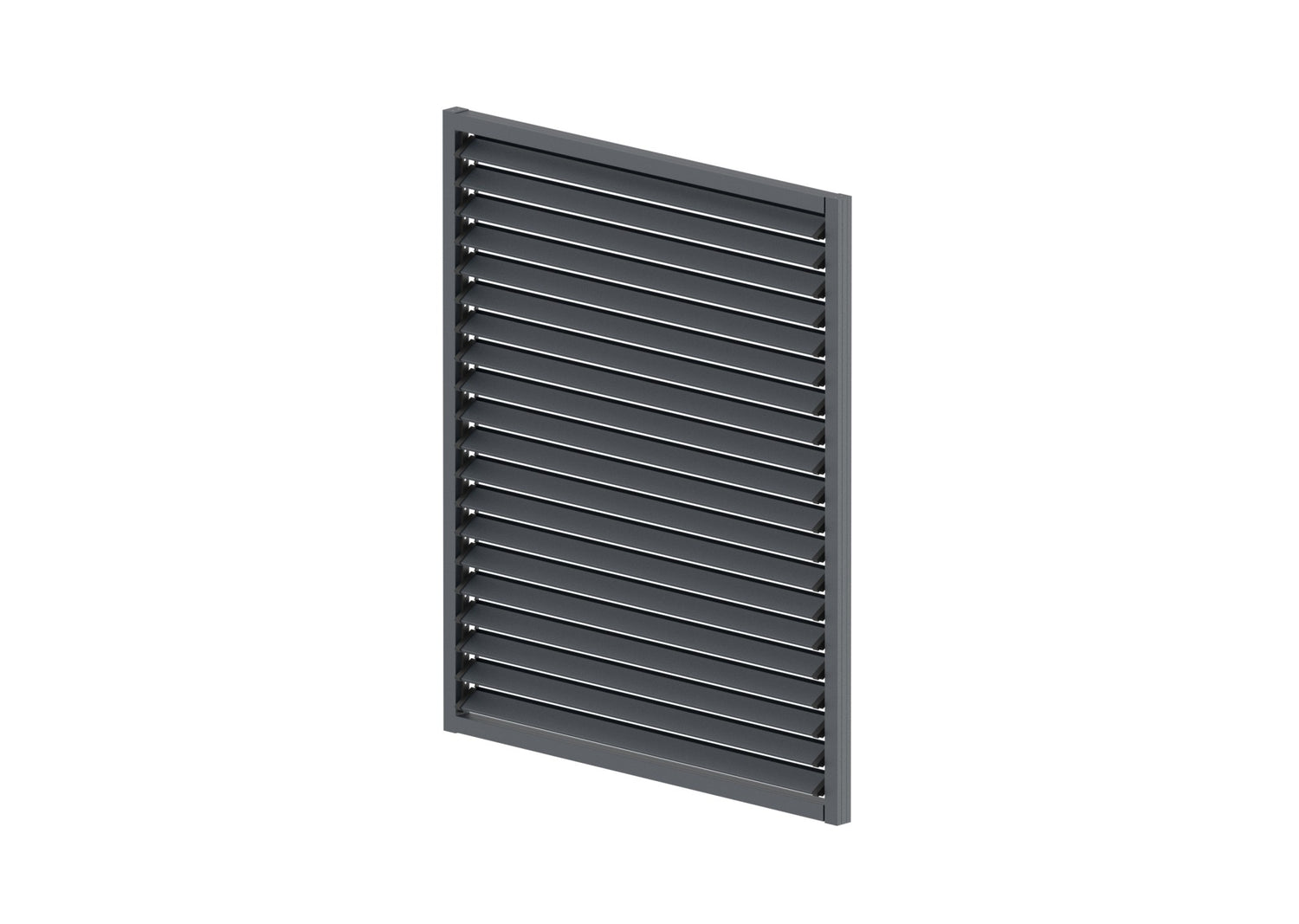

Set black plastic horizontal tilting system 1.86x1.340 m, with 1.2 m Anthracite aluminium infill 20x95, in Anthracite aluminium frame 50x60
Kód produktu: FG/SWS-PVC-FR-SET1
Complete set of a modern horizontal tilting system designed for the production of elegant infills and shading systems.
The construction consists of a sturdy aluminium frame 50 × 60 mm in Anthracite RAL 7016 finish. The system infill consists of aluminium slats 20 × 95 mm in Anthracite RAL 7016 finish, which ensures a modern appearance, high strength and optimal shading, complemented by a black plastic tilting mechanism allowing regulation of air flow and privacy.
The system is designed for quick assembly without welding, by screwing with A2 fasteners. The aluminium profiles made of EN AW-6063-T6 material ensure high resistance to corrosion, moisture and weather conditions. The powder-coated surface finish guarantees long-term colour stability, UV resistance and a modern matte appearance without the need for further maintenance. The construction allows for easy disassembly and replacement of individual parts in case of modifications or damage.
Advantages:
- modern horizontal tilting system
- sturdy aluminium frame 50 × 60 mm
- standard maintenance
- high resistance to corrosion and weather conditions
- UV stable powder coating RAL 7016
- simple and quick assembly without welding
- possibility of regulating shading and privacy
- elegant matte design suitable for modern shading.
Set components:
- 1 ks FG/P50x60-6000-R7016
- 1 ks FG/P50x60-1850-R7016
- 2 ks FG/PC20x8-6000-R7016
- 2 ks FG/PC20x8-1850-R7016
- 4 ks A-DIN 912-A2 M10x60
- 4 ks FG/CP50x60-R7016
- 8 ks A-DIN 7982C-TX-A2 4,2x22
- 4 ks FG/SWS-440-PVC-BLACK
- 10 ks FG/SWS-20x95-2400-R7016
Parameters
Download
Parts of set
Set of aluminum post 50x60 and cap - 6000mm R7016 FG/P50x60-6000-R7016
Set of aluminum post 50x60 and cap - 1850mm R7016 FG/P50x60-1850-R7016
Narrow cover strip for post profiles and the U-adapter of the fencing system, 20 × 08 – 6.0 m – Anthracite RAL 7016 FG/PC20x8-6000-R7016
Narrow cover strip for post profiles and the U-adapter of the fencing system, 20 × 08 – 1.85 m – Anthracite RAL 7016 FG/PC20x8-1850-R7016
Hexagon socket head cap screw, AISI304, M10x60 A-DIN 912-A2 M10x60
Aluminum cap for post 50x60 R7016 FG/CP50x60-R7016
Sheet metal screw with countersunk head-TORX, stainless steel A-DIN 7982C-TX-A2 4,2x22
Movable plastic system - blinds - pair (left + right) FG/SWS-440-PVC-BLACK
Aluminum infill 20x95 - 2400mm, RAL7016 FG/SWS-20x95-2400-R7016
