TO-4024

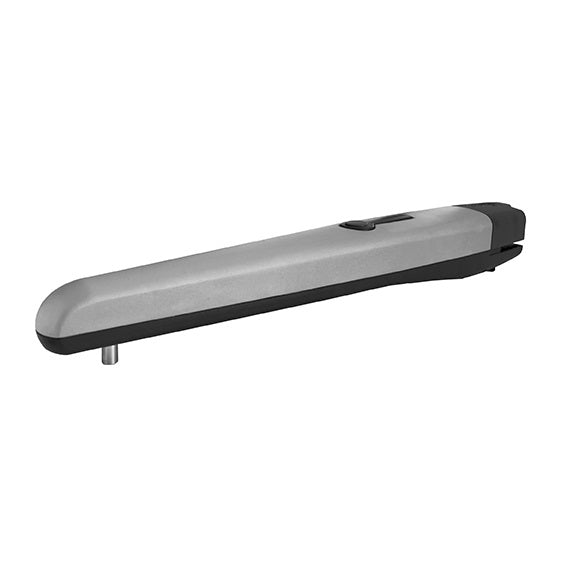

Engine NICE - TOONA up to 3m

Mark: Nice, Max. wing length: 3m, Recommended weight of the wing: 150kg, End point: Need end point for open position, Motor power supply: DC 24V, Performance: 120W, Force: 1800N, Speed: 0,016 m/s, Type: Threaded, Controller: MCA1R10, Protection level: IP44, Encoder: Yes

56.770 Ft
without VAT
72.098 Ft
with VAT


PCS
Stock availability
SK Krompachy > 10
HU Nagytarcsa 0

Kapcsolat

Adjon meg néhány általános információt a szállítási és kézbesítési irányelveiről.

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Parameters

Mark
Information about producer of product
Nice
Max. wing length
Maximum wing length for the given drive
3m
Recommended weight of the wing
Odporúčaná hmotnosť krídla brány pre správnu funkčnosť pohonu.
150kg
Type
Threaded
End point
Information about the need for gate end stops with the selected drive.
Need end point for open position
Motor power supply
Type and value of the motor supply voltage
DC 24V
Performance
120W
Force
1800N
Speed
Parameter of the drive feed speed
0,016 m/s
Controller
MCA1R10
Protection level
IP44
Encoder
Yes
