A-BLACK/250P-000-set4

Glass clamp - set

Material: Stainless steel AISI 304, Surface finish: Powder coating, Glass t: 6/6,76/8/8,76/10/10,76/12/12,76, Post: flat, Effect: Black RAL 9004, Model: Model 25P

9.882 Ft
without VAT
12.550 Ft
with VAT


PCS
Stock availability
SK Krompachy 20
HU Nagytarcsa 0

Kapcsolat

Adjon meg néhány általános információt a szállítási és kézbesítési irányelveiről.

lubomir.petruska@umakov.sk
+421915093533 +393483490444

Description

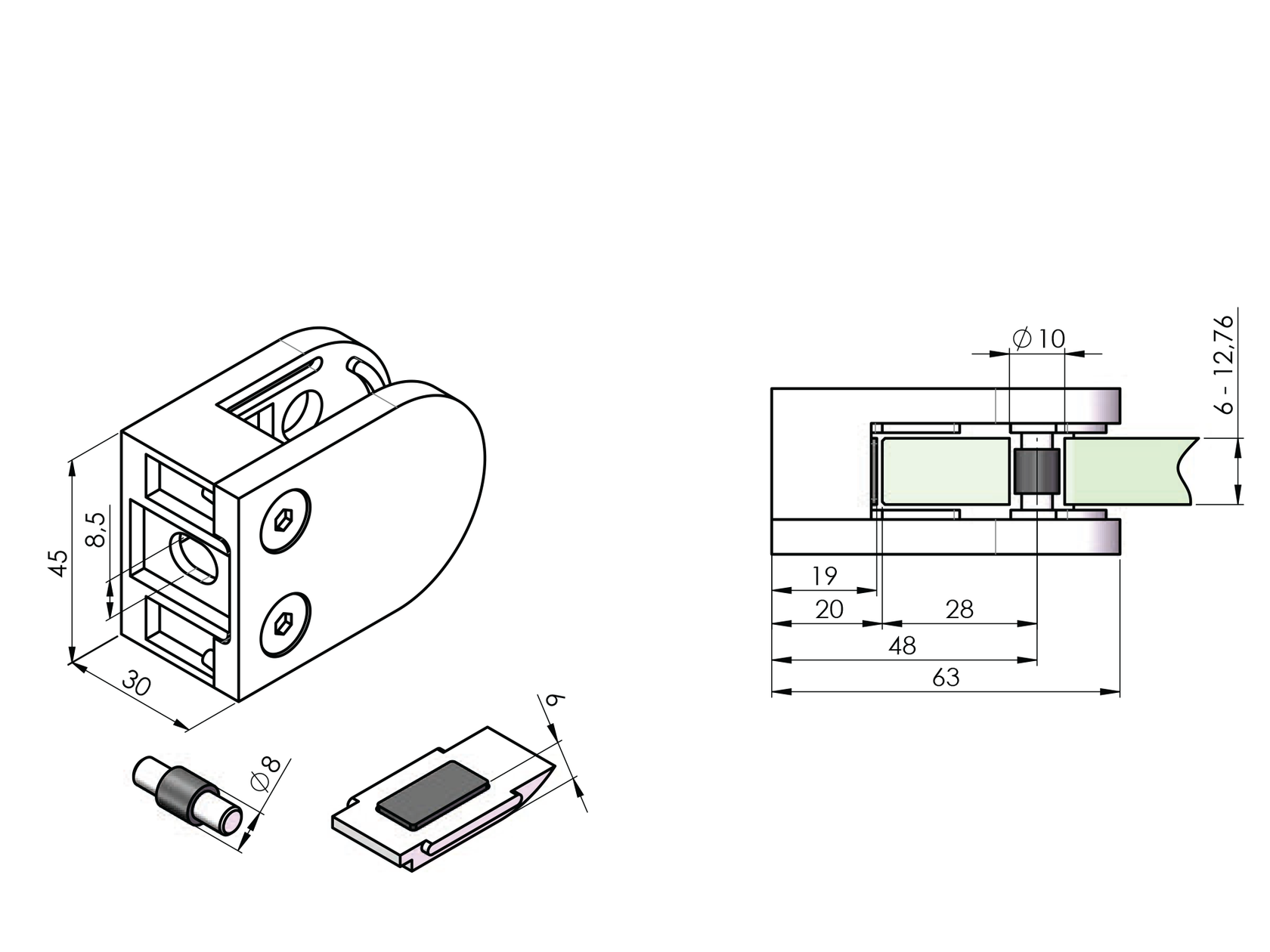

SET4 contains 4 pieces of glass holder in disassembled state + 8 pieces of screws A2 DIN7991 M6x16 + 8 pieces of PVC caps in gray color to cover screws A2 DIN7991 M6x16 + 4 pieces of screws A2 DIN 7380 M8x20. Glass filling holder (sheet metal, panel filling). Glass holding (fall prevention): clamp connection (recommended for top anchoring) or clamp connection + pin (recommended for side anchoring) or clamp connection + safety plate (recommended for side anchoring). The holder does not include gaskets (need to purchase 2 gaskets according to glass thickness) and caps for screws.

Parameters

Material
Defines the material from which the product is made.
Stainless steel AISI 304
Surface finish
Surface finish of product
Powder coating
Glass t
Determines the thickness of the glass in mm the product is suitable for
6/6,76/8/8,76/10/10,76/12/12,76
Effect
Vyberte si farebný odtieň.
Black RAL 9004
Model
Model 25P
Post
Determines use based on the size and shape of the post
flat

Catalog list
